Facility

Our Manufacturing Facility
Precision Engineered Stainless Steel

From Scrap to Superior Finished Products – All Under One Roof

At Maruti Inox (India) Pvt. Ltd., our manufacturing facility is designed for sustainable, precision stainless steel production. Since 2010, we have integrated scrap trading, melting, hot rolling, and forward integration into bright bar finishing. Our TUV NORD ISO 9001-certified plant is equipped with modern machinery and 12+ in-house testing facilities to ensure every product meets global standards. We don’t just make steel – we give scrap a second life as high-performance engineering material.

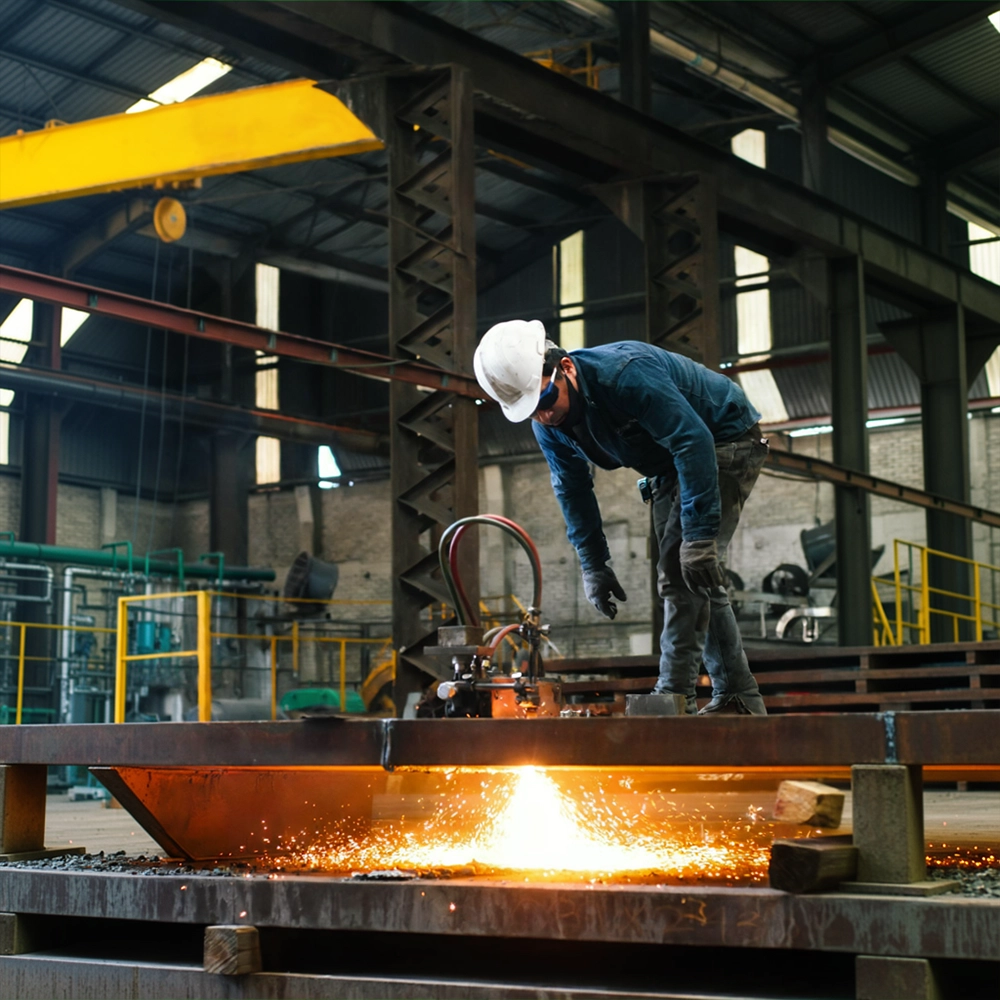

Steel Melting Shop
Transforming Scrap & Stainless Steel
Our melting operations are the heart of Maruti Inox. We process high-grade stainless steel scrap from certified vendors, melting it in controlled environments to achieve precise chemical compositions. Every batch is monitored to ensure low-carbon emission steel production.

Equipment & Capabilities List

Scrap Trading & Sourcing

Certified vendors, traceable raw materials

Electric Melting Furnaces

For stainless steel grades (200, 300, 400 series)

Ingot Casting

Bottom poured ingots for sound internal structure

Continuous Casting

For billets and blooms (as per forward integration plans)

Production Capacity

Scalable to meet growing international & domestic demand

Quality Control

For stringent straightness (PSQ shafts)

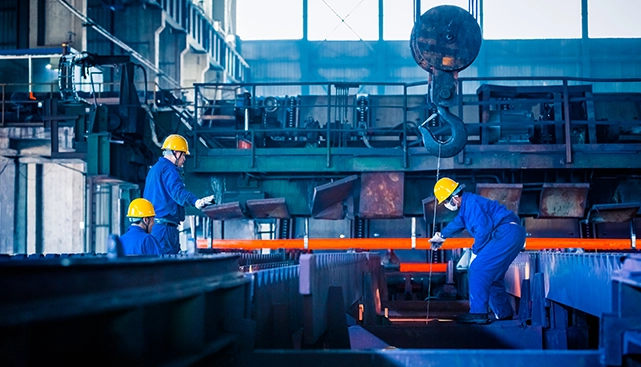

Hot Rolling Mill
Producing Shapes with Dimensional Accuracy
Our hot rolling mill converts stainless steel ingots into precision hot rolled bars. We produce a wide range of shapes including rounds, RCS (round corner squares), hexagons, squares, angles, and flats. The rolling process is carefully controlled to achieve uniform internal structure, defect-free surfaces, and consistent dimensions.

Key Capabilities

Shapes Produced

Rounds, RCS, Hexagons, Squares, Angles, Flats

Size Range (Rounds)

16 mm – 140 mm

Tolerance Standard

ASTM A484 / ISO

Condition

As-rolled or heat treated (annealed, QT)

Quality Checks

Dimensional inspection, surface defect monitoring

Heat Treatment
Tailoring Stainless Steel
To meet specific customer requirements for strength, hardness, and ductility, Maruti Inox offers in-house heat treatment services. Our controlled furnaces ensure consistent results across every batch, enabling us to deliver bars with precise mechanical properties.

We provide the following heat treatment options:

Annealed / Solution Annealed

For maximum ductility and corrosion resistance

Quenched & Tempered (QT 700 / QT 800 / QT 900)

For high strength and hardness

Quenched & Double Tempered

For enhanced toughness

Strain Hardening

For increased tensile strength

  • Austenitic grades (304, 316): Solution annealed for corrosion resistance
  • Martensitic grades (410, 420, 431): Quenched & tempered for high strength and hardness
  • PSQ shafts: Heat treated for straightness and dimensional stability
Cold Finishing Facility
Precision Bright Bars & Stainless Steel
Our forward integration into cold finishing allows us to produce high-precision Bright Bars and PSQ (Pump Shaft Quality) bars. Using advanced draw benches, peeling machines, grinding, and polishing lines, we achieve tight tolerances (h8, h9, h10, h11) and superior surface finishes. This facility enables us to consume our own hot rolled raw material and serve demanding international and domestic markets.

Equipment & Capabilities List

Cold Drawing Draw Benches

For straight bar drawing

Peeling/Turning Machines

For precision straight bars

Centreless Grinding Machines

For tight diameter tolerances

Bar Straightening Machines

For stringent straightness (PSQ shafts)

Automatic Chamfering Machines

For end finishing

Band Saw Cutting Machines

For custom lengths

  • Bright Round Bars (16-130mm, h9/h10/h11)
  • Hexagonal Bright Bars (14-60mm, h11)
  • Square & Rectangle Bright Bars (h11)
  • PSQ – Pump Shaft Quality Bars (16-80mm, h8/h9) – Austenitic & Martensitic grades
In-House Testing Lab
12+ Facilities

Every batch is tested in-house for chemical, mechanical, and dimensional accuracy. We provide a Test Certificate with every supply.

Testing Equipment

Chemical

Spectroscope (PMI), Wet Lab, IGC, Grain Microscope

Mechanical

UTM, Hardness Tester, Impact Tester, Extensometer, Jominy, Torque

NDT & Surface

Ultrasonic, Salt Spray, MPI, LPT, Surface Roughness, Profile Projector

Pretested

Steel

Assured

Properties

Defect

Free

Dimensional

Accuracy

100%

Quality

Packaging
Surface Protection Guaranteed

We prevent scratching, rubbing, and corrosion during transit with multiple packaging options.

Packaging Methods

Standard

HDPE/LDPE sheets, 500-1000 kg bundles, Signode strapping, lifting belts

Tubing

Each bar in plastic tube – anti-scratch

O-Rings

Rubber rings between bars (for sizes >20mm)

Box Packing

Wooden boxes for export orders

Extra tube packing + distance rings for shaft surface protection
  • Standard Packing: All material is packed in high-density polythene sheets to preserve the material during handling, storage, and transit.
  • Bundle weight: 500 to 1000 kgs, strapped with Signode straps.
  • Tubing:Each bar packed in plastic tubing to avoid surface scratching and damage during transit.
  • Plastic / Rubber O-Rings: Bars individually packed with O-rings at different locations to avoid rubbing and scratching. Available for sizes above 20 mm.
  • Lifting Belts: All 1000 kg bundles are provided with two lifting belts to facilitate customer unloading at destination.
  • Box Packing: Box packing available in different lengths and weights as per order requirement.
Facility
Why Maruti Inox?

Why Our Facility Stands Apart

End-to-End Control

From scrap trading to finished bright bars.

PSQ Specialists

h8/h9 tolerances for pump shafts – a unique capability.

12+ In-House Tests

Certificate with every supply. No third-party labs.

Sustainable

Low-carbon emission steel from recycled scrap.

Export-Ready Packaging

Tube, O-ring & wooden box options.
